Track Bushing Replacement for Excavators and Bulldozers In the world of heavy earthmoving equipment—excavators and bulldozers—the undercarriage is the foundation of machine productivity. And within the undercarriage, track bushings are among the most heavily stressed components. They work in an environment of extreme pressure, abrasion, shock loading, and contamination. As a manufacturer who produces thousands of these critical parts, I can tell you: understanding track bushing replacement and knowing how to select a quality product will directly impact your operating costs and machine uptime.

What Is Track Bushing Replacement?

Track bushings are the cylindrical steel sleeves that fit between the track pins and the track links in a crawler-type undercarriage. When they move, each bushings engage with the drive sprocket, and the track pin rotates inside the bushing. Over hundreds of hours of operation, this surface wears down. The internal diameter grows larger, the wall thickness decreases, and the overall track distance between pins track elongates.

 Track bushing replacement is the process of removing worn or failed track bushes from the track chains or track links and pressing new, high-quality track bushings into place. This is not a simple bolt-on job. It requires specialized hydraulic presses, precision fixtures, and a thorough understanding of undercarriage geometry.

When Is Replacement Necessary?

You need to replace track bush or track pins when you observe one or more of the following signs:

1. The track hangs more than 30–50 mm below the track frame when lifted.

2. The bushing outer diameter has become flat or concave on the side contacting the sprocket.

3. The hardened surface layer is peeling or cracking.

4. If track pins spins freely inside the bushings track designed for interference fit, severe internal wear has occurred.

5. The drive sprocket teeth no longer mesh cleanly with the bushings.

If broken track chains, damaged sprockets, and even final drive destruction. A $50 bushing track can protect a $15,000 final drive. That is the economics of preventive replacement.

The Replacement Process suggest:

1. The track chain is broken at the master link using a hydraulic track press.

2. Old pins and bushings are pressed out of the link assembly. This requires forces typically between 100 and 300 tons, depending on machine size.

3. The link bores are checked for ovality, scoring, or cracking. Any damaged link is discarded.

4. Newtrackbushings are lubricated (if wet type) or coated with anti-seize (if dry type) and pressed into the links using controlled force to avoid distortion.

5. For sealed and lubricated track (SALT) or sealed track (ST), new rubber or polyurethane seals are installed to retain grease or oil.

6.  New pins are pressed through the bushings, and the endless chain is reassembled.

7. The rebuilt track is installed on the machine, tensioned to factory specs, and run under light load for the first hour.

In some cases, especially with larger excavators and bulldozers, a bushing turn (rotating the bushing 180 degrees to expose an unworn face) is performed instead of full replacement. However, a true replacement—with new track bushings, new track pins, and new seals—gives the longest second life.

How to Choose High-Quality Track Bushings

Not all track bushings are created equal. we see vast differences in material quality, heat treatment, dimensional accuracy, and surface finish. Here is some suggestions for selecting the best bushings track excavators or dozers.

1. Check the Steel Grade and Source High-quality bushings start with high-quality alloy steel.

 The industry standard for heavy-duty track bushings is through-hardened medium-carbon alloy steel such as: 40Cr, 40Mn2, 20CrMnTi Avoid bushings made from unidentified recycled scrap.

2. Evaluate Heat Treatment and Hardness Profile This is the most critical factor.

A good bushing must forged and have a hard, wear-resistant surface (typically 52–58 HRC) and a tough, ductile core (30–40 HRC) to absorb impact. - Poor quality: Shallow case hardening (less than 2 mm depth) or full hardness throughout (brittle, prone to cracking). - Good quality: Through-hardening with tempered martensite structure, or deep induction hardening (3–5 mm case depth) with a softer core.

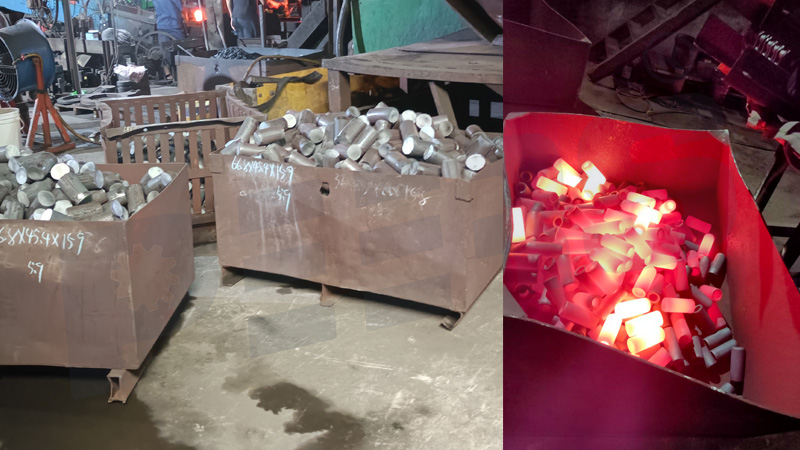

 As Forged aligns the metal grain flow to follow the bushing track contour. This dramatically improves impact resistance and fatigue life. Cast bushings, while cheaper, have random grain structure and hidden porosity. So it inhance theirs quality.

3. Inspect Sealing Grooves and Surface Finish Quality bushings track have precisely machined “seal lands” and “smooth internal bores” (better than 1.6”μm Ra surface roughness). Rough surfaces tear up seals and retain abrasive mud, accelerating wear. Also check the “chamfers” – properly designed lead-in chamfers prevent seal damage during assembly and protect the pin from sharp edges.

Match OEM Specifications Exactly Do not guess.

A high-quality aftermarket bushing must match the original equipment manufacturer’s (OEM) dimensions to within 0.05 mm on critical diameters.

Key dimensions include:

- Outer diameter (OD) – for press-fit into the link

- Inner diameter (ID) – for pin clearance

- Overall length - Flange diameter and thickness (if flanged) Buy from a supplier who publishes a detailed dimensional drawing and references OEM part numbers.

Undersized OD will spin in the link. Oversized OD will crack the link. Either failure ruins your undercarriage.

Final Manufacturer’s Advice Track bushing replacement is a serious mechanical job—not a field repair. Have it done by a shop with a 200+ ton hydraulic press, proper tooling, and experienced technicians. When buying bushings, resist the temptation of the lowest price. Look for forged alloy steel, verified heat treatment, OEM-matching dimensions, A high-quality track bushing will quietly protect your excavator or bulldozer for thousands of hours.
